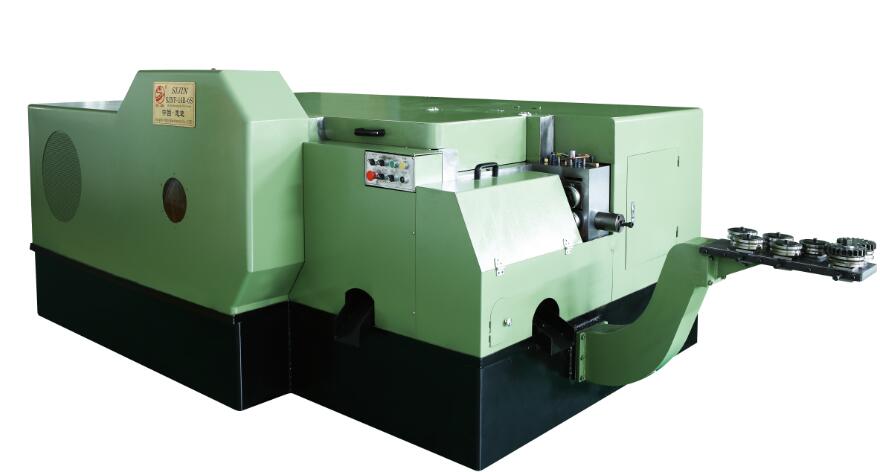

SJNF 11B-6SL

Forging station	6 NO.
Cut-off dia.(Max)	11 MM
Cut-off length(Max)	25 MM
Kick out length(Max)	30 MM
Die pitch	50 MM
Forging power	56,000 KGS
PKO length(Max)	13 MM
Speed range	50-150 PCS/MIN
Main motor	11 KW
Lubrication motor	1.5 KW
Lubricant	600 L
Approx weight	5,500KGS
Machine dimensions	270165120 CM
