SJ2500

Main specifications and parameters

Die locking force

25000 KN

Space between tie bars

1500*1500 MM

Tie bar diameter

Φ 310 MM

Die thickness(Min-Max)

750~1800 MM

Locking stroke

1500 MM

Ejection stroke

300 MM

Ejection force

750 KN

Injection force

1700 KN

Injection position

0 、 -400 MM

Plunger diameter

140 MM
160 170 MM

150 MM
180 MM

Injection weight

30.5 KG
40.1  45.4KG

35.1 KG
50.9 KG

Casting pressure (Intensifg.)

110 Mpa
84  74Mpa

96 Mpa
66 Mpa

Casting area

2272 CM2
2976 3378CM2

2604 CM2
3787 CM2

Max.Casting area (40Mpa)

6250 CM2

Plunger penetration

450 MM

Casting flange diameter

Φ280 MM

Height of pressure chamber flange

30 MM

Injection stroke

1050 MM

Dry cycle

28 S

System working pressure

16 Mpa

Motor power

55+75 KW

Oil tank capacity

3800 L

Machine weight

195000 KG

Machine dimensions(L*W*H)

14.7*4.9*5.0 M

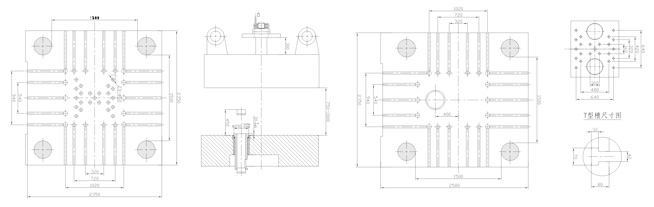

Mold Size

NO Selected
