  Home >> Products >> Die Casting Machines >> Cold Chamber Die Casting Machines >> All

SJ150

Main specifications and parameters

Die locking force

1500 KN

Space between tie bars

440*440 MM

Tie bar diameter

Φ 80 MM

Die thickness(Min-Max)

200~500 MM

Locking stroke

350 MM

Ejection stroke

85 MM

Ejection force

100 KN

Injection force

180 KN

Injection position

0 、 -100 MM

Plunger diameter

40 MM

50 MM

Injection weight

0.8 KG

1.3 KG

Casting pressure (Intensifg.)

143 Mpa

91 Mpa

Casting area

104 CM2

164 CM2

Max.Casting area (40Mpa)

375 CM2

Plunger penetration

120 MM

Casting flange diameter

Φ110 MM

Height of pressure chamber flange

10 MM

Injection stroke

340 MM

Dry cycle

7 S

System working pressure

12 Mpa

Motor power

11 KW

Oil tank capacity

350 L

Machine weight

6200 KG

Machine dimensions(L*W*H)

5*1.2*2.3 M

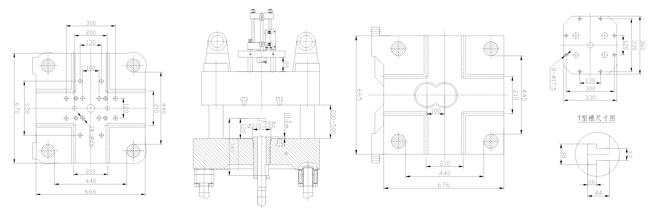

Mold Size

NO Selected
