Home >> Products >> Bolt Former >> 8-Station Cold Forging Machine >> All

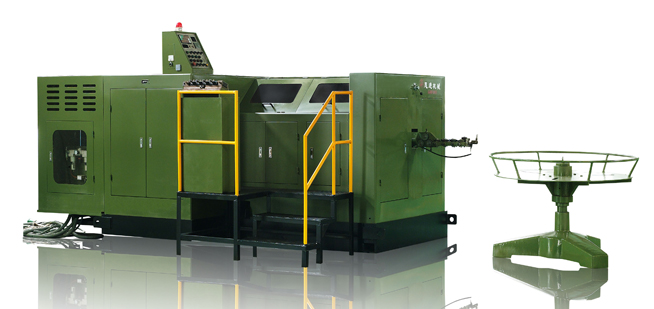

SJBF-308L

Forging station	8 NO.
Forging force	800,000 KGS
Max cut-off dia.	��45 MM
Max cut-off length	400 MM
Speed range	20-40 PCS/MIN
P.K.O stroke	70 MM
K.O.Stroke	330 MM
Main slide stroke	520 MM
Main moto	200 KW
Cut-off-die size	��129*180L MM
Punch die size	��138* 270L MM
Main die size	��185* 420L MM
Die pitch	200 MM
*Machine dimension(LWH)*	1075550400
Machine weight(Approx)
Max forging dia on head	��65 MM
Normal bolt size	24-36 MM
Shank length of blank	60-320 MM

NO Selected
