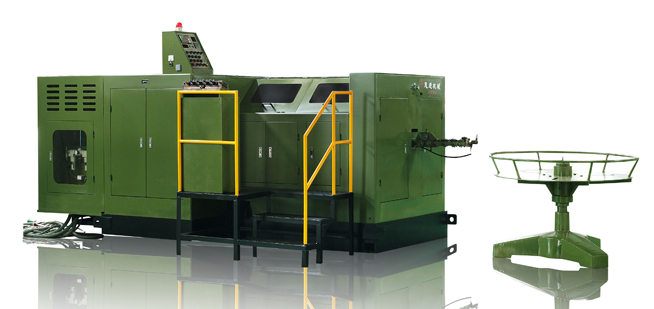

SJBP-135UL

Forging station	5 NO.
Forging force	155,000 KGS
Max cut-off dia.	��16 MM
Max cut-off length	400 MM
Speed range	35-70 PCS/MIN
P.K.O Stroke	50 MM
K.O.Stroke	375 MM
Main slide stroke	560 MM
Main motor	37 KW
Cut-off-die size	��63* 80L MM
Punch die size	��60* 160L MM
Main die size	��86* 400L MM
Die pitch	110 MM
*Machine dimension(LWH)*	800300220 CM
Machine weight(Approx)	50,000 KGS
Normal bolt size	8-14 MM
Shank length of blank	100-360 MM
