Home >> Products >> Bolt Former >> 2, 3-Station Cold Forging Machine >> All

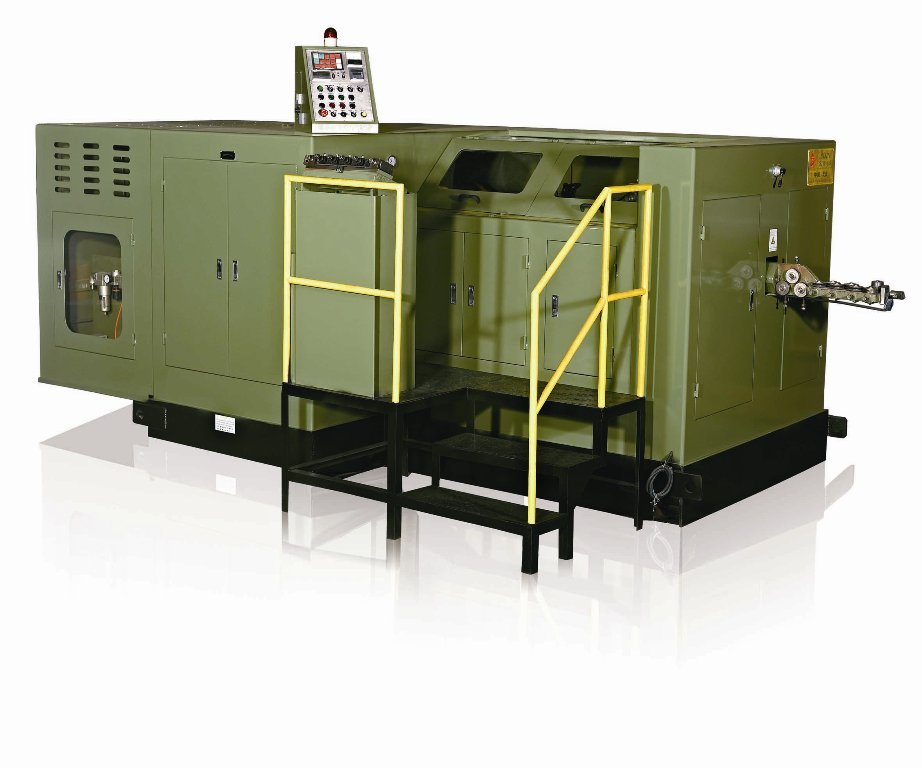

SJBF-62S

Forging station

2 NO.

Forging force

35,000 KGS

Max cut-off dia.

�� 8 MM

Max cut-off length

85 MM

Speed range

180-280 PCS/MIN

P.K.O Stroke

12 MM

K.O.Stroke

75 MM

Main slide stroke

110 MM

Main motor

11 KW

Cut-off-die size

��30* 45L MM

Punch die size

��40* 90L MM

Main die size

��50* 85L MM

Die pitch

60 MM

Machine dimension(L*W*H)

328*146.5*140 CM

Machine weight(Approx)

6,500 KGS

Normal bolt size

M3-M6

Shank length of blank

10-70 MM

NO Selected
