Home >> Products >> Bolt Former >> 2, 3-Station Cold Forging Machine >> All

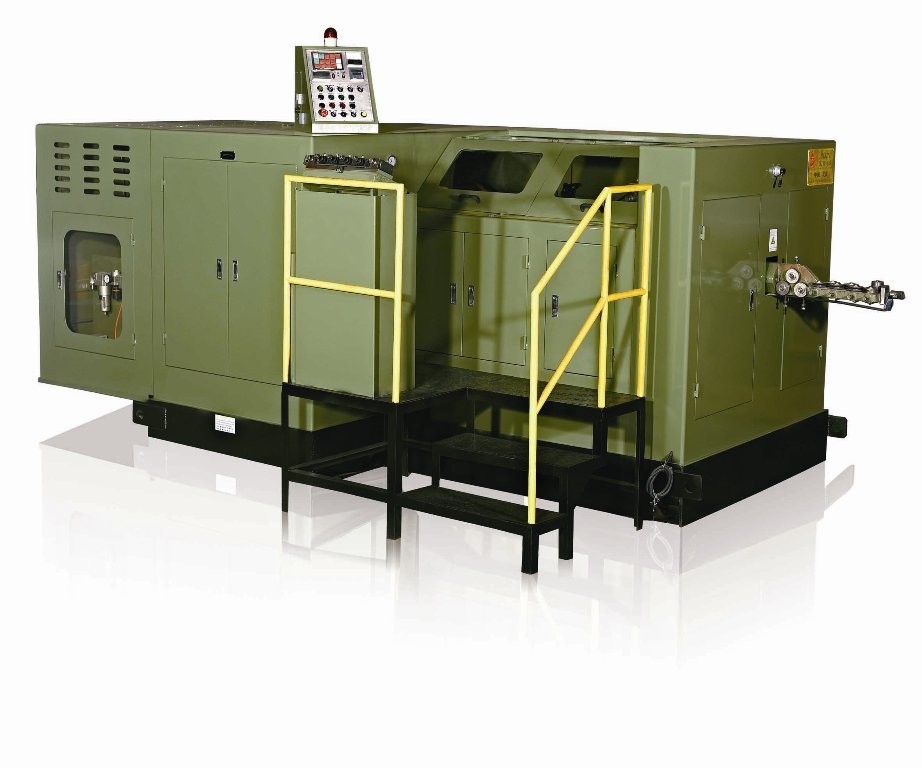

SJBF-43L

Forging station

3 NO.

Forging force

15,000 KGS

Max cut-off dia.

�� 5 MM

Max cut-off length

70 MM

Speed range

180-280 PCS/MIN

P.K.O Stroke

10 MM

K.O.Stroke

65 MM

Main slide stroke

100 MM

Main motor

7.5 KW

Cut-off-die size

��20* 30L MM

Punch die size

��32* 62L MM

Main die size

��38* 75L MM

Die pitch

48 MM

Machine dimension(L*W*H)

227*165*150 CM

Machine weight(Approx)

4,900 KGS

Normal bolt size

M2-M4

Shank length of blank

10-60 MM
