Home >> Products >> Nut Former >> SJNF Series 7-Station Nut Forming Machine >> All

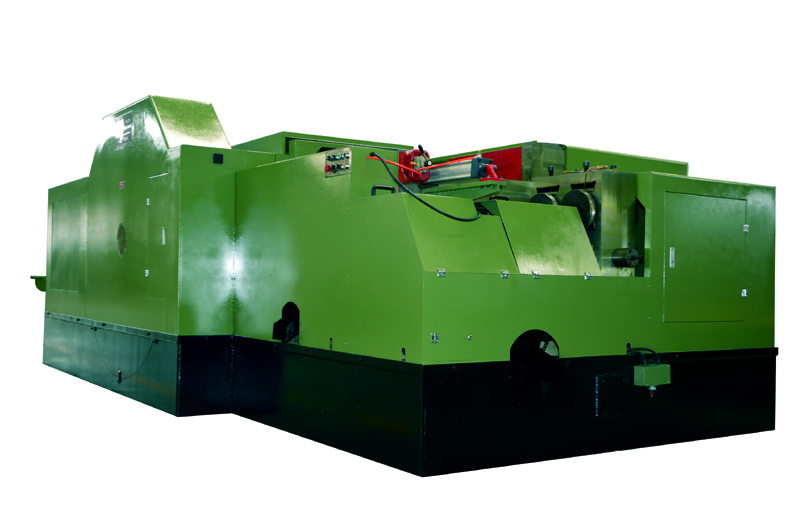

SJNF33B-7SL

Forging station	7 NO.
Max cut-off dia.	30 MM
Max cut-off length	75 MM
Max kick out length	100 MM
P.K.O. length(Max)	30 MM
Die pitch	140 MM
Forging power	400,000 KGS
Products	Φ 35*80L MM
Ram stroke	240 MM
Output for nut	40-90 PCS/MIN
Main motor	160 MM
Lubrication motor	2.2*2 KW
Lubricant	1,900 L
Approx weight	57,000 KGS
Machine dimensions	630370200 CM
