Home >> Products >> Nut Former >> SJNF Series 7-Station Nut Forming Machine >> All

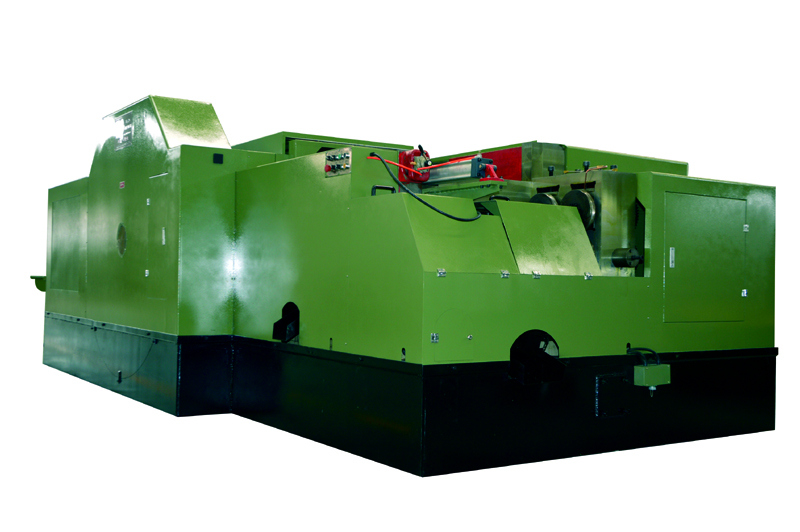

SJNF24B-7SL

Forging station	7 NO.
Max cut-off dia.	24 MM
Max cut-off length	60 MM
Max kick out length	80 MM
P.K.O. length(Max)	25 MM
Die pitch	100 MM
Forging power	300,000 KGS
Products	Φ 24*80L MM
Ram stroke	280 MM
Output for nut	45-80 PCS/MIN
Main motor	55 MM
Lubrication motor	2.2*2 KW
Lubricant	1,800 L
Approx weight	35,000 KGS
Machine dimensions	560300200 CM
