Home >> Products >> Bolt Former >> 7-Station Cold Forging Machine >> All

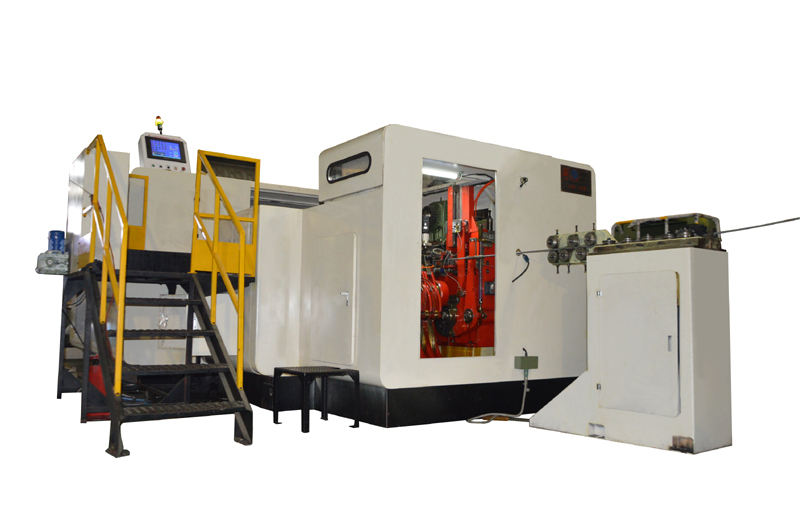

SJBP-207L

Forging station	7 NO.
Forging force	420,000 KGS
Max cut-off dia.	Φ 30 MM
Max cut-off length	240 MM
Speed range	45-65 PCS/MIN
P.K.O stroke	50 MM
K.O.Stroke	220 MM
Main slide stroke	346 MM
Main moto	90 KW
Cut-off-die size	Φ 82*130L MM
Punch die size	Φ 90*215L MM
Main die size	Φ 125*240L MM
Die pitch	140 MM
*Machine dimension(LWH)*	800400320 CM
Machine weight(Approx)	94,000KGS
Max forging dia on head	Φ 44 MM
Normal bolt size	12-22 MM
Shank length of blank	30-210 MM
