Home >> Products >> Bolt Former >> 7-Station Cold Forging Machine >> All

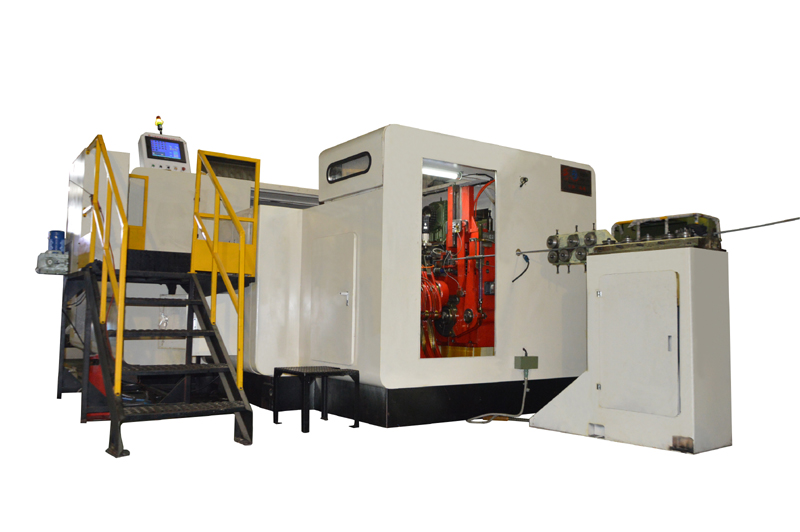

SJBP-167S

Forging station	7 NO.
Forging force	280,000 KGS
Max cut-off dia.	Φ 24 MM
Max cut-off length	190 MM
Speed range	50-70 PCS/MIN
P.K.O stroke	40 MM
K.O.Stroke	170 MM
Main slide stroke	274 MM
Main moto	75 KW
Cut-off-die size	Φ 75*100L MM
Punch die size	Φ 75*185L MM
Main die size	Φ 108*200L MM
Die pitch	129 MM
*Machine dimension(LWH)*	650380260 CM
Machine weight(Approx)	59,000KGS
Max forging dia on head	Φ 32 MM
Normal bolt size	10-18 MM
Shank length of blank	20-160 MM
