Home >> Products >> Bolt Former >> 7-Station Cold Forging Machine >> All

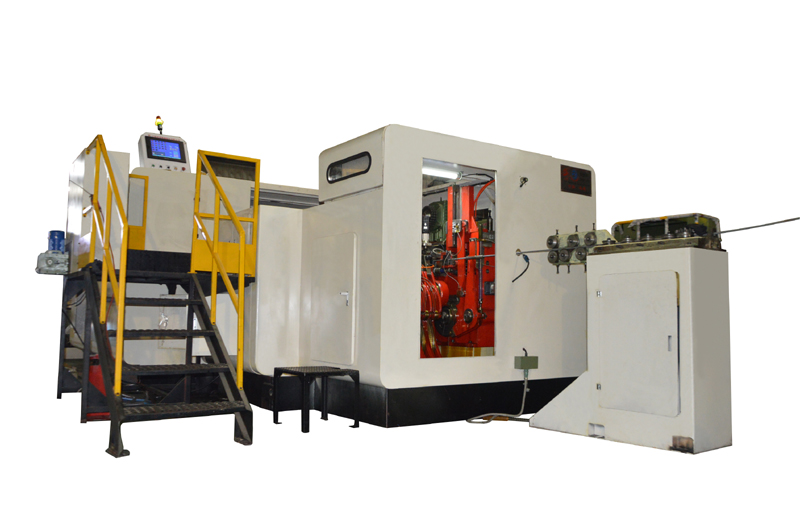

SJBP-137S

Forging station	7 NO.
Forging force	148,000 KGS
Max cut-off dia.	Φ 20 MM
Max cut-off length	140 MM
Speed range	70-110 PCS/MIN
P.K.O stroke	30 MM
K.O.Stroke	115 MM
Main slide stroke	200 MM
Main moto	45 KW
Cut-off-die size	Φ 58*80L MM
Punch die size	Φ 60*130L MM
Main die size	Φ 94*190L MM
Die pitch	110 MM
*Machine dimension(LWH)*	460330220 CM
Machine weight(Approx)	33,000KGS
Max forging dia on head	Φ 25 MM
Normal bolt size	8-14 MM
Shank length of blank	20-110 MM

NO Selected
