Home >> Products >> Bolt Former >> 7-Station Cold Forging Machine >> All

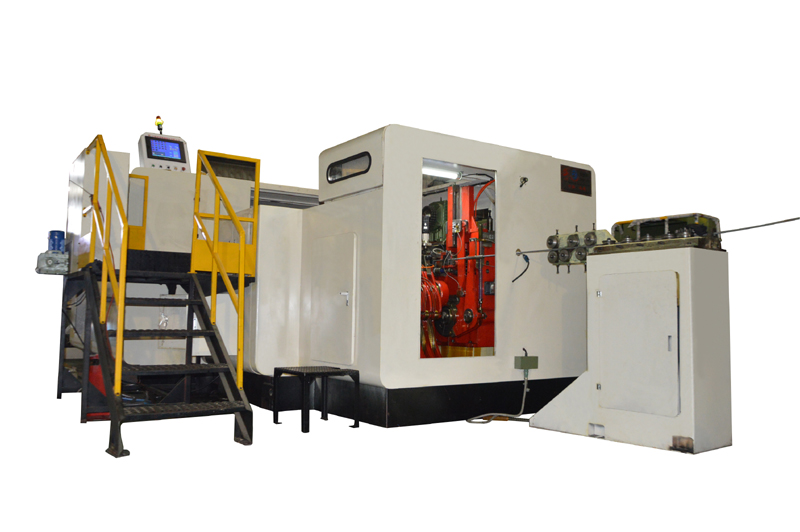

SJBP-107S

Forging station	7 NO.
Forging force	115,000 KGS
Max cut-off dia.	Φ 16 MM
Max cut-off length	133 MM
Speed range	70-130 PCS/MIN
P.K.O stroke	30 MM
K.O.Stroke	115 MM
Main slide stroke	190 MM
Main moto	30 KW
Cut-off-die size	Φ 52*75L MM
Punch die size	Φ 53*115L MM
Main die size	Φ 75*135L MM
Die pitch	94 MM
*Machine dimension(LWH)*	460310210 CM
Machine weight(Approx)	27,000KGS
Max forging dia on head	Φ 22 MM
Normal bolt size	6-12 MM
Shank length of blank	15-110 MM
