Home >> Products >> Bolt Former >> 6-Station Cold Forging Machine >> All

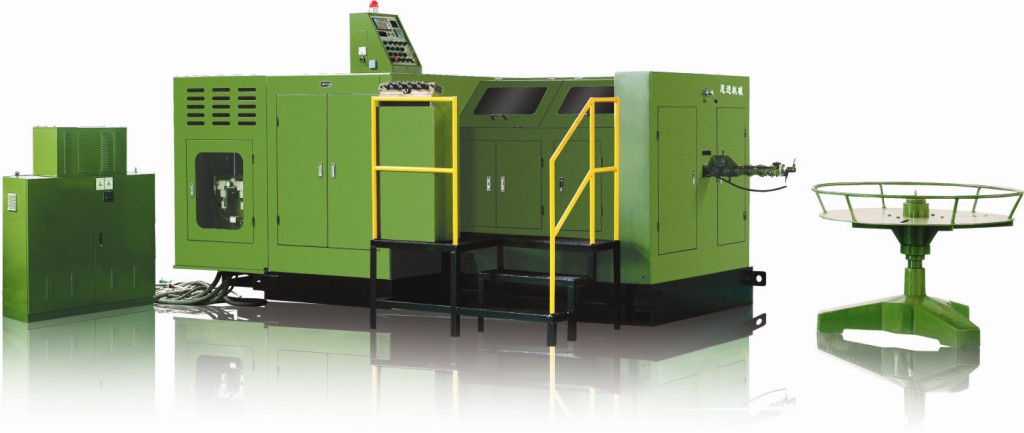

SJBP-256L

Forging station	6 NO.
Forging force	520,000 KGS
Max cut-off dia.	Φ 34 MM
Max cut-off length	380 MM
Speed range	30-60 PCS/MIN
P.K.O stroke	50 MM
K.O.Stroke	320 MM
Main slide stroke	510 MM
Main moto	132 KW
Cut-off-die size	Φ 109*150L MM
Punch die size	Φ 120*270L MM
Main die size	Φ 148*355L MM
Die pitch	160 MM
*Machine dimension(LWH)*	980470350 CM
Machine weight(Approx)	145,000KGS
Max forging dia on head	Φ 50 MM
Normal bolt size	16-28 MM
Shank length of blank	60-310 MM
