Home >> Products >> Nut Former >> SJNF Series 6-Station Nut Forming Machine >> All

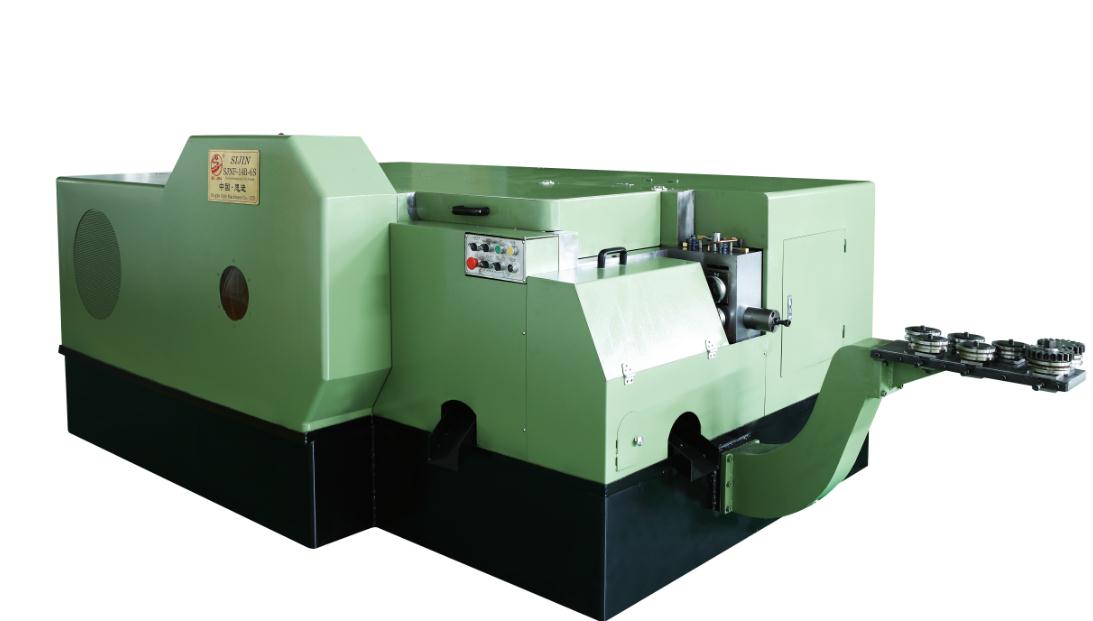

SJNF17B-6S

Forging station

6 NO.

Across flats of nut

14-17 mm

Suitable hex nut

M8-M10 mm

Cut-off dia.(Max)

17 MM

Cut-off length(Max)

20 MM

Kick out length(Max)

20 MM

Die pitch

80 MM

Forging power

120,000 KGS

Ram stroke

80 mm

Out put of nut

70-170 PCS/MIN

Main motor

22 KW

Lubrication motor

2.2 KW

Lubricant

1,000 L

Approx weight

10,000 KGS

Machine dimensions

320*220*140 CM

NO Selected
