Home >> Products >> Bolt Former >> 6-Station Cold Forging Machine >> All

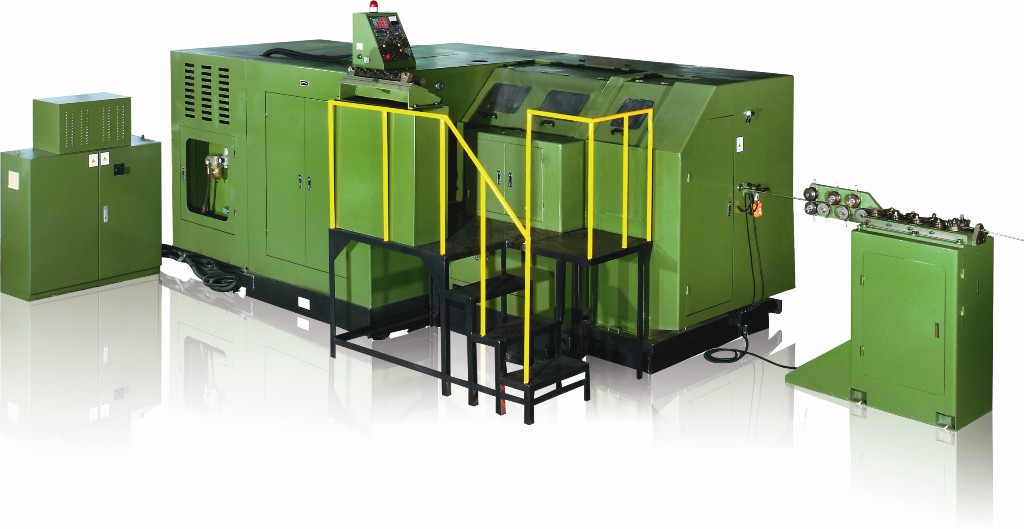

SJBP-86L

Forging station
6 NO.

Forging force
105,000 KGS

Max cut-off dia.
��13 MM

Max cut-off length
190 MM

Speed range
50-110 PCS/MIN

P.K.O stroke
26 MM

K.O.Stroke
160 MM

Main slide stroke
270 MM

Main moto
30 KW

Cut-off-die size
��42* 60L MM

Punch die size
��45* 115L MM

Main die size
��60* 190L MM

Die pitch
80 MM

Machine dimension(L*W*H)
520*270*200 CM

Machine weight(Approx)
26,000KGS

Max forging dia on head
��18 MM

Normal bolt size
5-10 MM

Shank length of blank
30-155 MM
