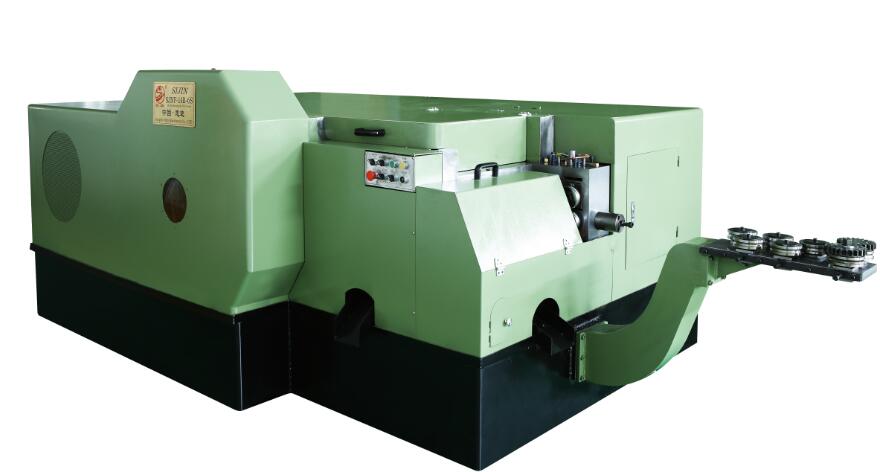

SJNF 8B-6S

Forging station

6 NO.

Across flats of nut

5-8 MM

Suitable hex nut

M2.5-M5 MM

Cut-off dia.(Max)

8 MM

Cut-off length(Max)

8MM

Kick out length(Max)

12 MM

Die pitch

38 MM

Forging power

30,000 KGS

Ram stroke

40 MM

Speed range

300 PCS/MIN

Main motor

7.5 KW

Lubrication motor

1.5 KW

Lubricant

400 L

Approx weight

3,500 KGS

Machine dimensions

185*160*105 CM
