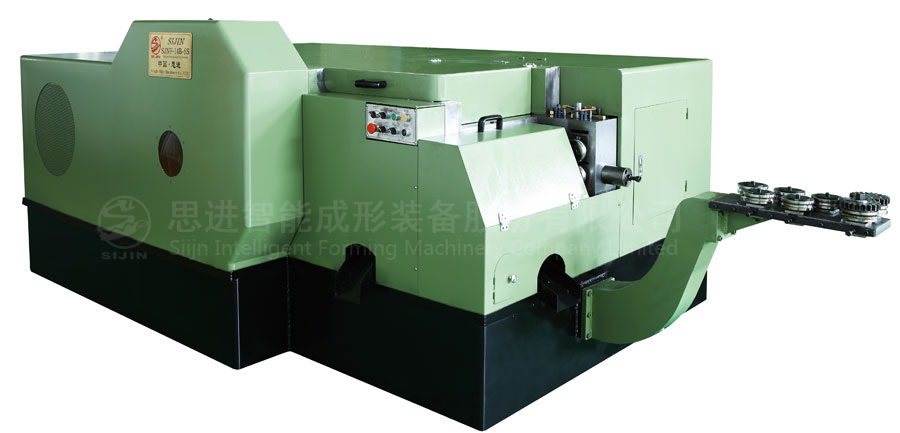

SJNF 41B-6S

Forging station	6 NO.
Across flats of nut	30-41 MM
Suitable hex nut	M20-M27 MM
Cut-off dia.(Max)	40 MM
Cut-off length(Max)	52 MM
Kick out length(Max)	68 MM
Die pitch	165 MM
Forging power	450,000 KGS
Ram stroke	210 MM
Speed range	50 PCS/MIN
Main motor	160 KW
Lubrication motor	1.5+2.2 KW
Lubricant	3,000 L
Approx weight	800,000 KGS
Machine dimensions	720420250 CM
