Home >> Products >> Nut Former >> SJNF Series 8-Station Nut Forming Machine >> All

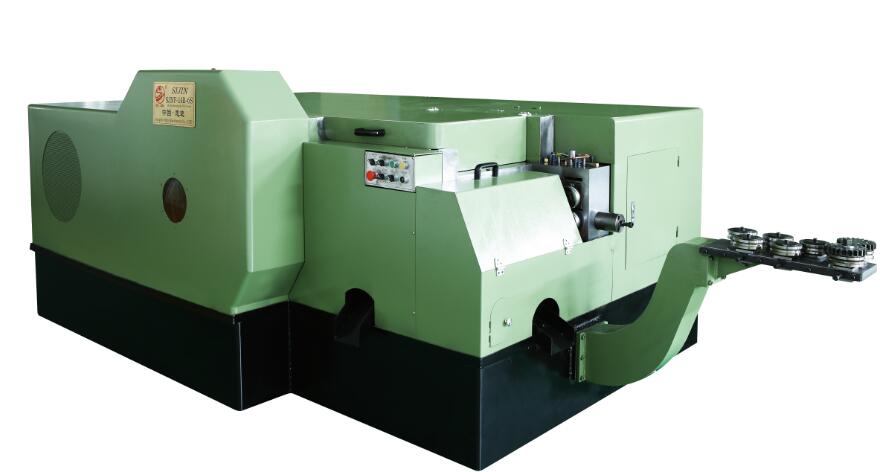

SJNP-19B-8SL

Forging station

8 NO.

Cut-off dia.(Max)

19 MM

Cut-off length(Max)

48 MM

P.K.O. Length(Max)

20 MM

Kick out length(Max)

60 MM

Die pitch

80 MM

Forging power

185,000 KGS

Ram stroke

220 MM

Speed range

50-90 PCS/MIN

Main motor

45 KW

Lubrication motor

1.5 2.2 KW

Lubricant

1,400 L

Approx weight

20,000 KGS

Machine dimensions

470*255*195 CM
