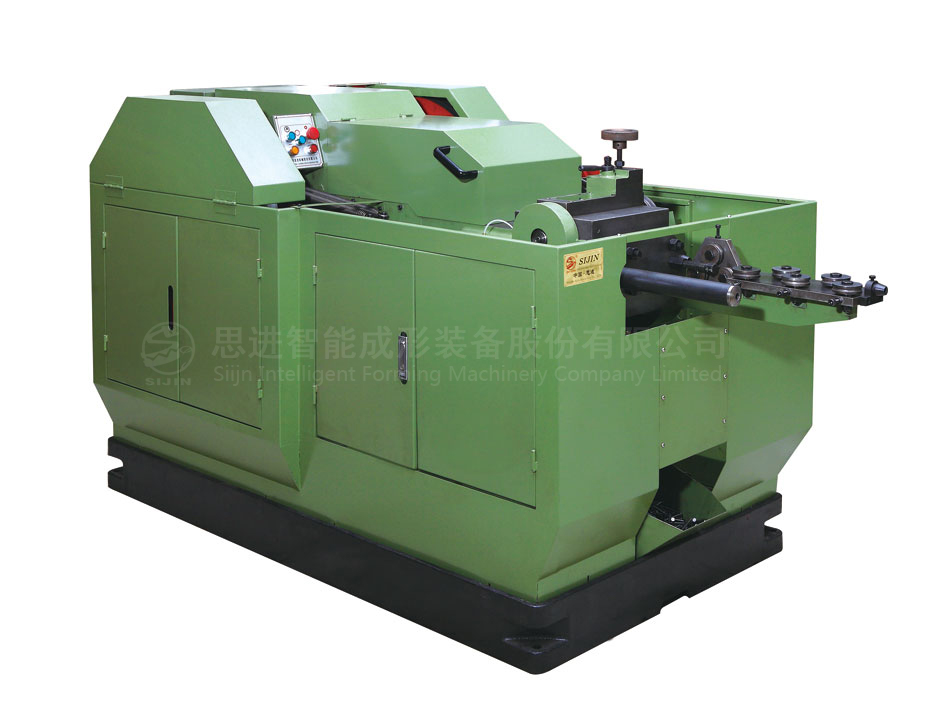

Home >> Products >> One Die Two Blow Forging Machine >> One die two blow cold forging machine >> All

Max makable dia	9mm
Max makable length	25-150mm
Max cut-off length	192mm
Slide stroke	220mm
Speed range	50-70 PCS/min
Main die size	Φ65*168Lmm
Rough punch size	Φ48*158L mm
Fine punch size	Φ40*158L mm
Cut-off-die size	Φ32*44Lmm
Cutter size	1450103mm
Main motor	11(15HP-6P-380V)kw
Oil pump	370w(1/4HP)
Net weight	5800kgs
Volume	440016001600mm
