Home >> Products >> One Die Two Blow Forging Machine >> One die two blow cold forging machine >> All

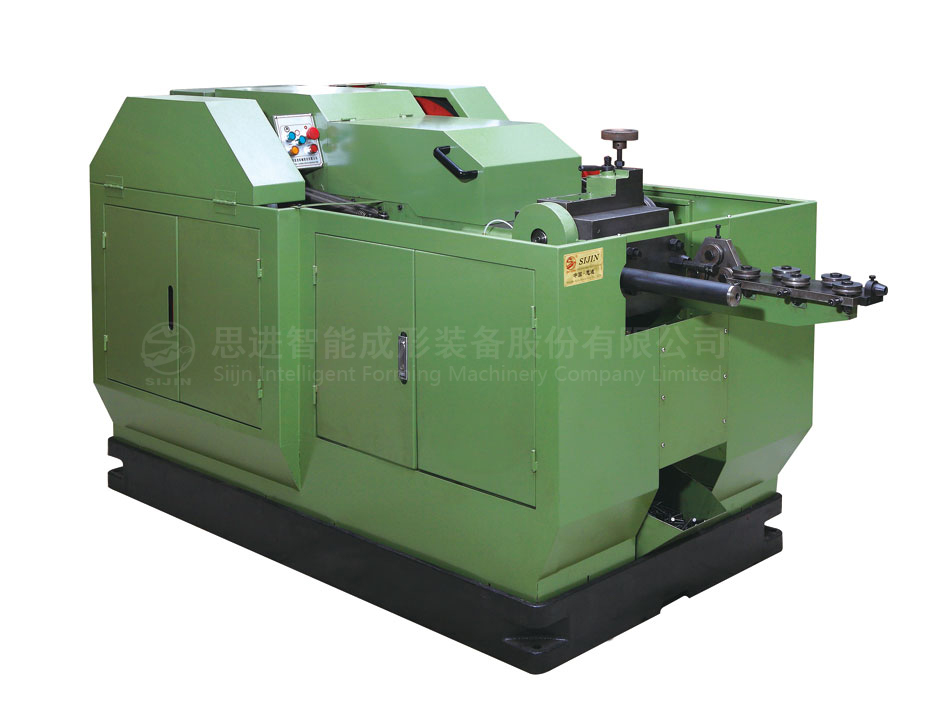

SJH05-37

Max makable dia	5mm
Max makable length	6-37mm
Max cut-off length	67mm
Slide stroke	84mm
Speed range	170-190 PCS/min
Main die size	Φ34.5*55.5Lmm
Rough punch size	Φ31*78L mm
Fine punch size	Φ31*78Lmm
Cut-off-die size	Φ19*40Lmm
Cutter size	93265mm
Main motor	2.2(3HP-4P-380V)kw
Oil pump	180w(1/4HP)
Net weight	1450kgs
Volume	190011001450mm
