Home >> Products >> One Die Two Blow Forging Machine >> One die two blow cold forging machine >> All

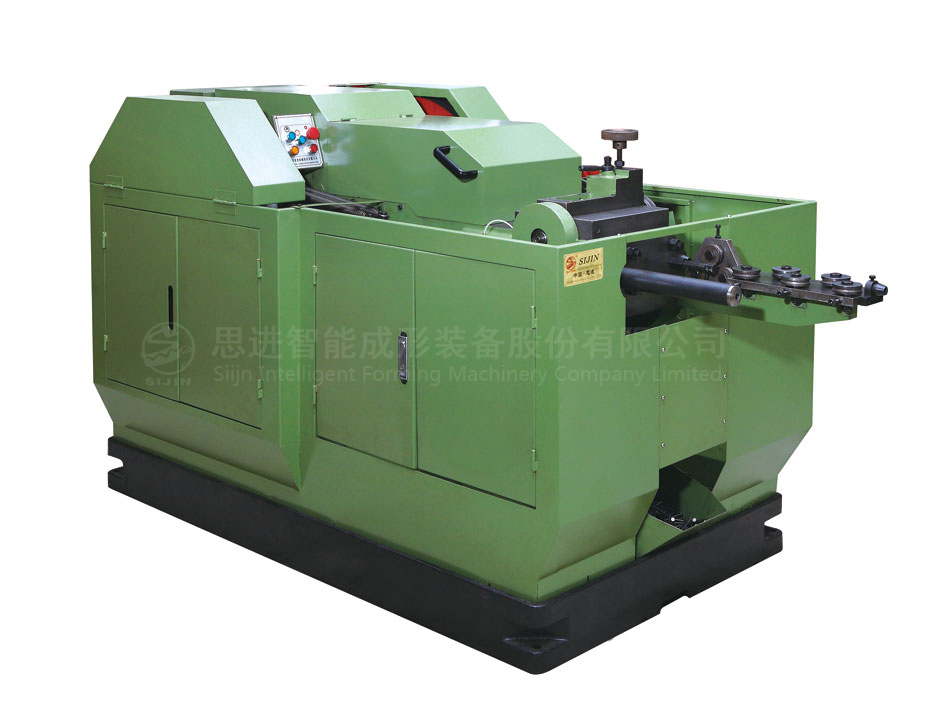

SJH06-76

Max makable dia	6mm
Max makable length	12-76mm
Max cut-off length	103mm
Slide stroke	124mm
Speed range	90-110 PCS/min
Main die size	Φ45*100Lmm
Rough punch size	Φ36*103L mm
Fine punch size	Φ36*103L mm
Cut-off-die size	Φ25*40Lmm
Cutter size	103878mm
Main motor	4(5HP-4P-380V)kw
Oil pump	180w(1/4HP)
Net weight	2100kgs
Volume	270011501200mm
