Home >> Products >> Bolt Former >> 2, 3-Station Cold Forging Machine >> All

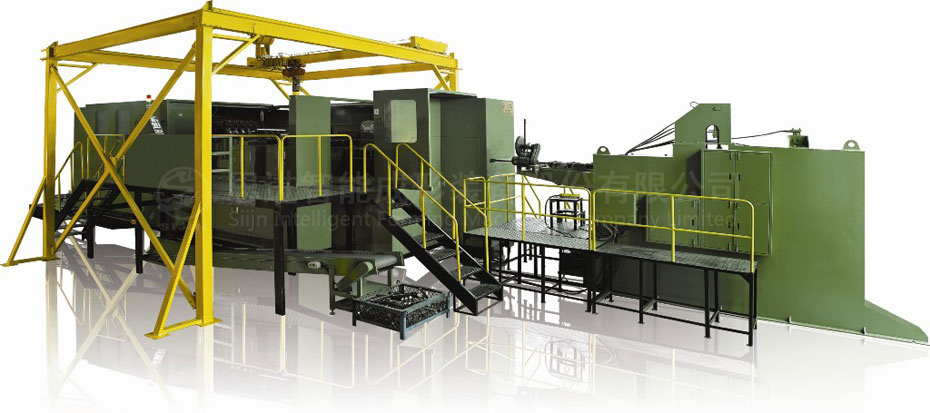

SJBF-163S

Forging station	3 NO.
Forging force	210,000 KGS
Max cut-off dia.	Φ18 MM
Max cut-off length	195 MM
Speed range	70-110 PCS/MIN
P.K.O Stroke	30 MM
K.O.Stroke	170 MM
Main slide stroke	260 MM
Main motor	55 KW
Cut-off-die size	Φ60* 90L MM
Punch die size	Φ75* 185L MM
Main die size	Φ100* 190L MM
Die pitch	120 MM
*Machine dimension(LWH)*	650290250 CM
Machine weight(Approx)	36,000 KGS
Normal bolt size	10-16 MM
Shank length of blank	20-152 MM
