Home >> Products >> Bolt Former >> 2, 3-Station Cold Forging Machine >> All

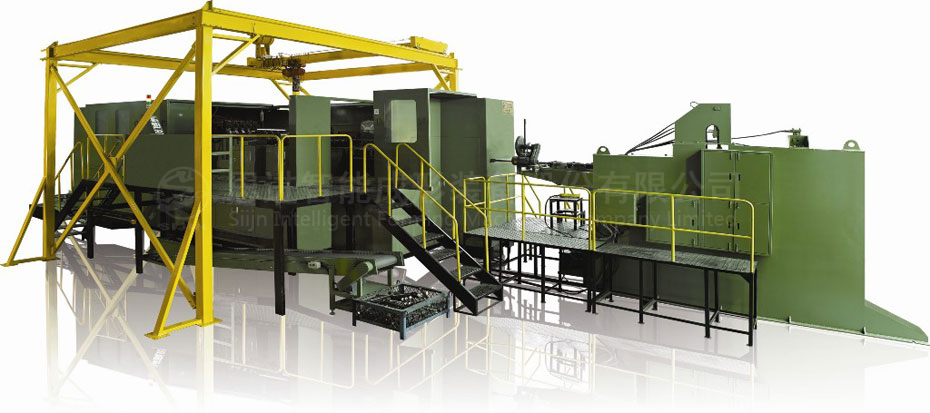

SJBF-133L

Forging station	3 NO.
Forging force	115,000 KGS
Max cut-off dia.	Φ15 MM
Max cut-off length	250 MM
Speed range	60-100 PCS/MIN
P.K.O Stroke	25 MM
K.O.Stroke	230 MM
Main slide stroke	350 MM
Main motor	30 KW
Cut-off-die size	Φ55* 70L MM
Punch die size	Φ60* 179L MM
Main die size	Φ86* 265L MM
Die pitch	110 MM
*Machine dimension(LWH)*	780260270 CM
Machine weight(Approx)	31,000 KGS
Normal bolt size	8-12.7 MM
Shank length of blank	70-210 MM

NO Selected
