Home >> Products >> Bolt Former >> 2, 3-Station Cold Forging Machine >> All

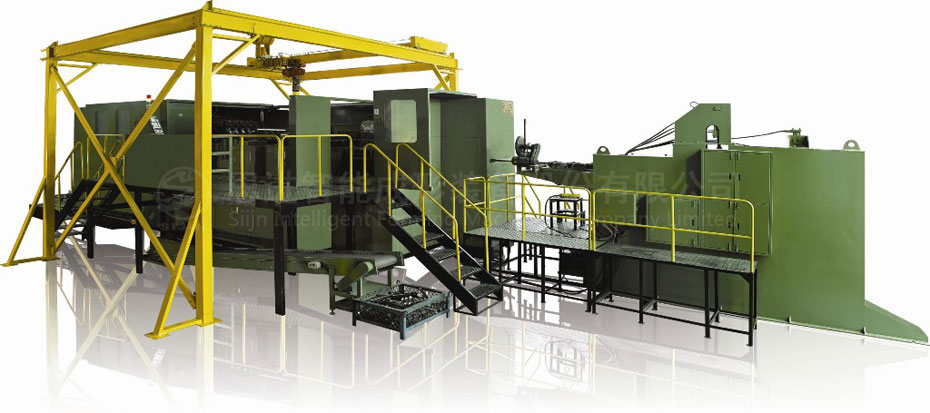

SJBF-133S

Forging station	3 NO.
Forging force	115,000 KGS
Max cut-off dia.	Φ15 MM
Max cut-off length	145 MM
Speed range	100-160 PCS/MIN
P.K.O Stroke	26 MM
K.O.Stroke	102 MM
Main slide stroke	200 MM
Main motor	30 KW
Cut-off-die size	Φ63* 69L MM
Punch die size	Φ60* 130L MM
Main die size	Φ86* 135L MM
Die pitch	98 MM
*Machine dimension(LWH)*	460260200 CM
Machine weight(Approx)	19,500 KGS
Normal bolt size	8-12.7 MM
Shank length of blank	20-100 MM
