Home >> Products >> Bolt Former >> 2, 3-Station Cold Forging Machine >> All

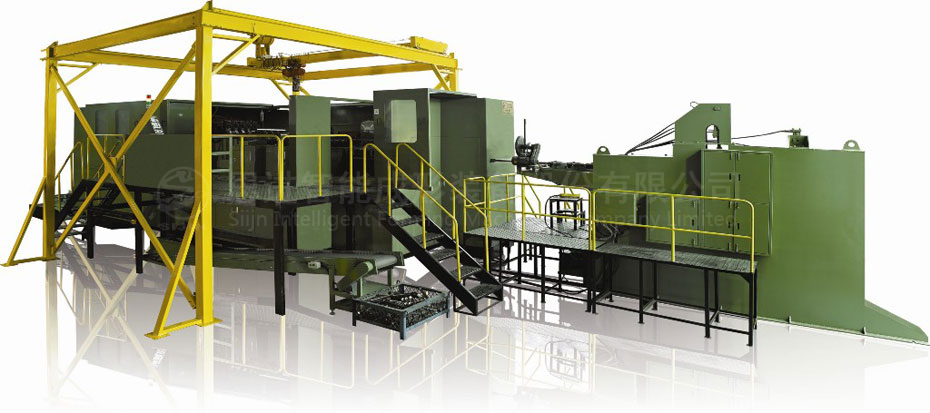

SJBF-103L

Forging station	3 NO.
Forging force	80,000 KGS
Max cut-off dia.	Φ12 MM
Max cut-off length	192 MM
Speed range	85-140 PCS/MIN
P.K.O Stroke	15 MM
K.O.Stroke	165 MM
Main slide stroke	280 MM
Main motor	22 KW
Cut-off-die size	Φ45* 59L MM
Punch die size	Φ53* 112L MM
Main die size	Φ75* 200L MM
Die pitch	90 MM
*Machine dimension(LWH)*	570250230 CM
Machine weight(Approx)	19,500 KGS
Normal bolt size	6-10 MM
Shank length of blank	30-152 MM
