Home >> Products >> Bolt Former >> 2, 3-Station Cold Forging Machine >> All

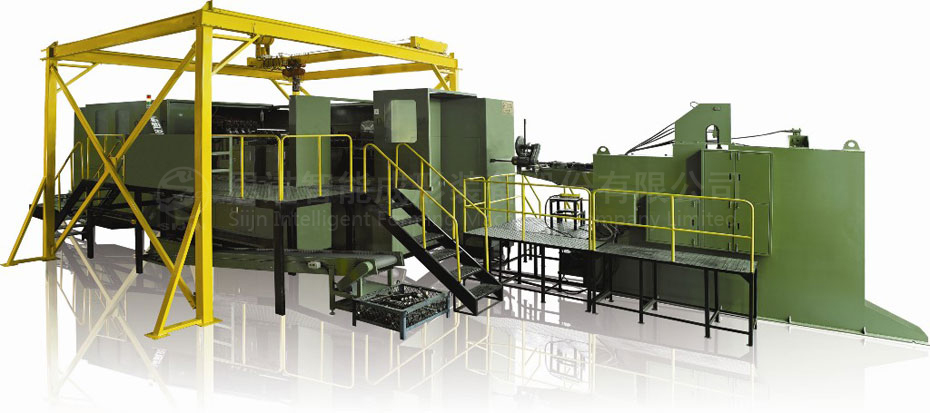

SJBF-103S

Forging station	3 NO.
Forging force	80,000 KGS
Max cut-off dia.	Φ12 MM
Max cut-off length	105 MM
Speed range	120-200 PCS/MIN
P.K.O Stroke	15 MM
K.O.Stroke	80 MM
Main slide stroke	150 MM
Main motor	22 KW
Cut-off-die size	Φ45* 59L MM
Punch die size	Φ53* 115L MM
Main die size	Φ75* 108L MM
Die pitch	90 MM
*Machine dimension(LWH)*	410250190 CM
Machine weight(Approx)	14,000 KGS
Normal bolt size	6-10 MM
Shank length of blank	15-70 MM
