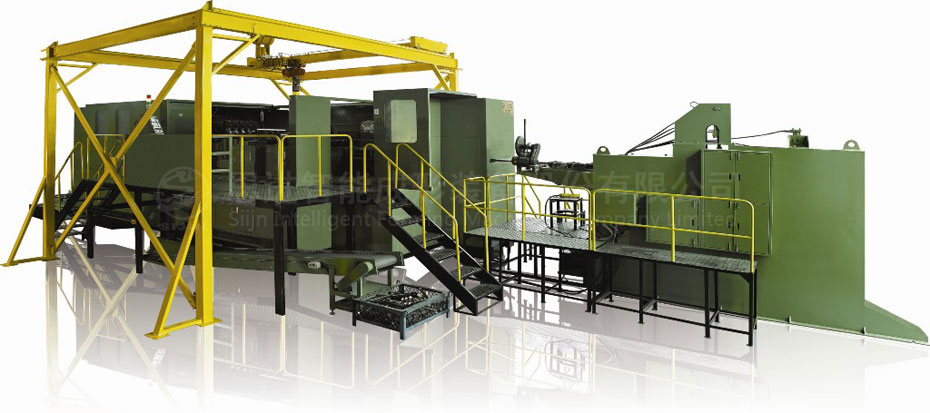

SJBF-83L

Forging station	3 NO.
Forging force	60,000 KGS
Max cut-off dia.	Φ10 MM
Max cut-off length	135 MM
Speed range	110-180 PCS/MIN
P.K.O Stroke	16 MM
K.O.Stroke	115 MM
Main slide stroke	192 MM
Main motor	18.5 KW
Cut-off-die size	Φ30* 50L MM
Punch die size	Φ45* 140L MM
Main die size	Φ60* 150L MM
Die pitch	70 MM
*Machine dimension(LWH)*	450220200 CM
Machine weight(Approx)	14,000 KGS
Normal bolt size	5-8 MM
Shank length of blank	25-107 MM
