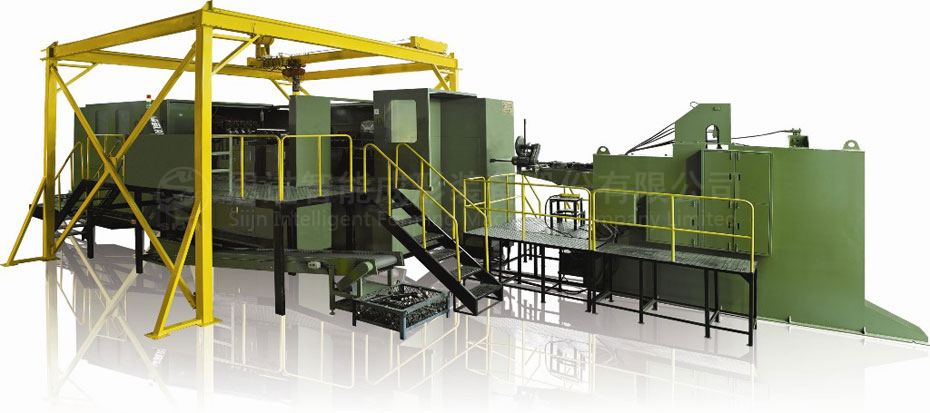

Home >> Products >> Bolt Former >> 2, 3-Station Cold Forging Machine >> All

Forging station	3 NO.
Forging force	60,000 KGS
Max cut-off dia.	Φ10 MM
Max cut-off length	75 MM
Speed range	140-240 PCS/MIN
P.K.O Stroke	12 MM
K.O.Stroke	52 MM
Main slide stroke	106 MM
Main motor	15 KW
Cut-off-die size	Φ35* 56L MM
Punch die size	Φ45* 95L MM
Main die size	Φ60* 80L MM
Die pitch	70 MM
*Machine dimension(LWH)*	360220180 CM
Machine weight(Approx)	10,000 KGS
Normal bolt size	5-8 MM
Shank length of blank	15-50 MM
