Home >> Products >> Nut Former >> SJNF Series 6-Station Nut Forming Machine >> All

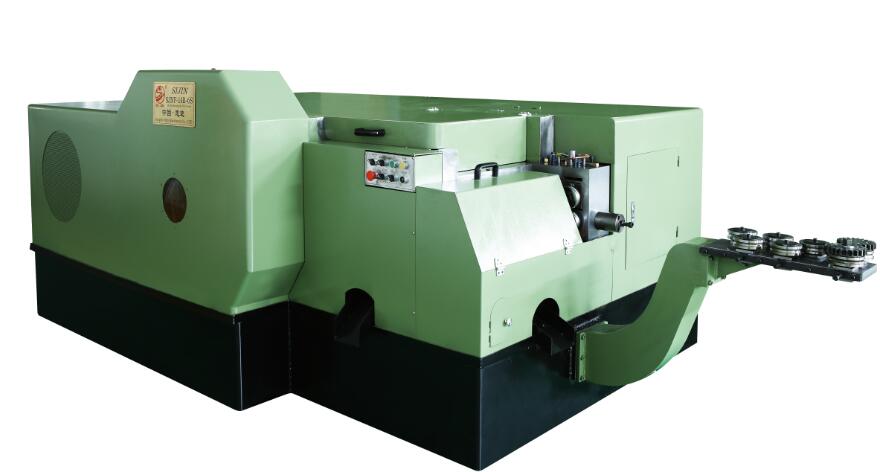

SJNF 24B-6S

Forging station

6 NO.

Across flats of nut

17-26 MM

Suitable hex nut

M10-M18 MM

Cut-off dia.(Max)

24 MM

Cut-off length(Max)

22/38 MM

Kick out length(Max)

30/45 MM

Die pitch

100 MM

Forging power

220,000 KGS

Ram stroke

110 MM

Speed range

50-100 PCS/MIN

Main motor

55 KW

Lubrication motor

1.5+2.2 KW

Lubricant

1,600 L

Approx weight

25,000 KGS

Machine dimensions

450*290*190 CM
