Home >> Products >> Nut Former >> SJNF Series 6-Station Nut Forming Machine >> All

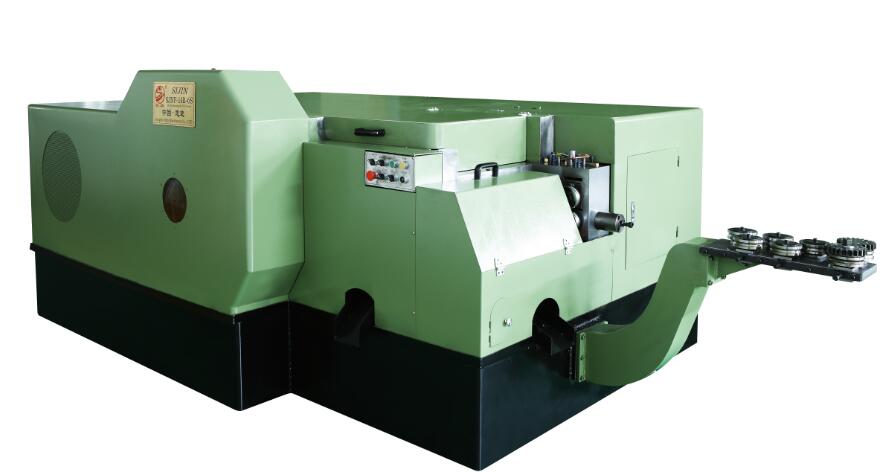

SJNF 19B-6S

Forging station

6 NO.

Across flats of nut

14-22 MM

Suitable hex nut

M8-M14 MM

Cut-off dia.(Max)

19 MM

Cut-off length(Max)

17 MM

Kick out length(Max)

25 MM

Die pitch

80 MM

Forging power

130,000 KGS

Ram stroke

100 MM

Speed range

140 PCS/MIN

Main motor

30 KW

Lubrication motor

2.2 KW

Lubricant

1000 L

Approx weight

14,000 KGS

Machine dimensions

370*220*160 CM
