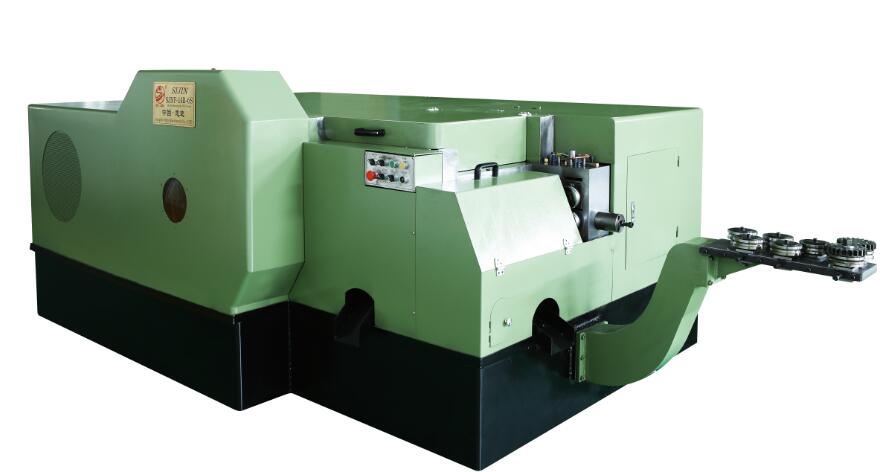

SJNF 14B-6S

Forging station

6 NO.

Across flats of nut

10-17 MM

Suitable hex nut

M6-M10 MM

Cut-off dia.(Max)

14 MM

Cut-off length(Max)

15 MM

Kick out length(Max)

18 MM

Die pitch

60 MM

Forging power

85,000 KGS

Ram stroke

70 MM

Speed range

220 PCS/MIN

Main motor

15 KW

Lubrication motor

2.2 KW

Lubricant

900 L

Approx weight

8,000 KGS

Machine dimensions

310*210*140 CM
