Home >> Products >> Bolt Former >> 2, 3-Station Cold Forging Machine >> All

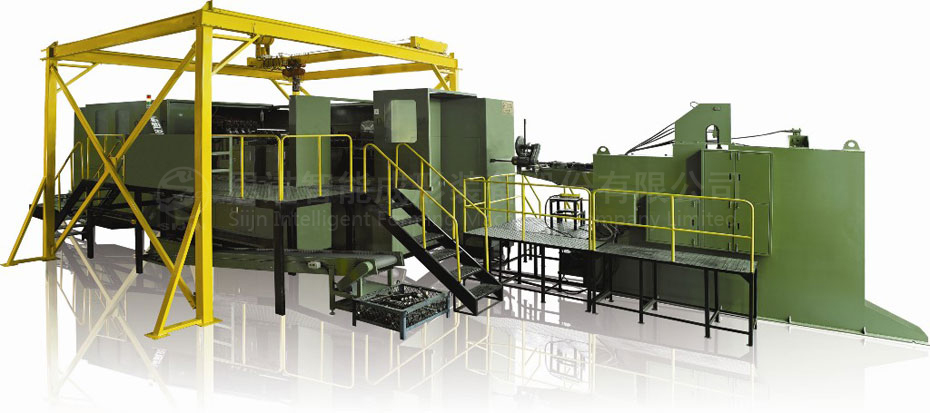

SJBF-63S

Forging station	3 NO.
Forging force	38,000 KGS
Max cut-off dia.	Φ8 MM
Max cut-off length	80 MM
Speed range	160-260 PCS/MIN
P.K.O Stroke	12 MM
K.O.Stroke	65 MM
Main slide stroke	110 MM
Main motor	11 KW
Cut-off-die size	Φ30* 45L MM
Punch die size	Φ40* 90L MM
Main die size	Φ50* 85L MM
Die pitch	60 MM
*Machine dimension(LWH)*	320200150 CM
Machine weight(Approx)	7,500 KGS
Normal bolt size	3-6 MM
Shank length of blank	10-65 MM
